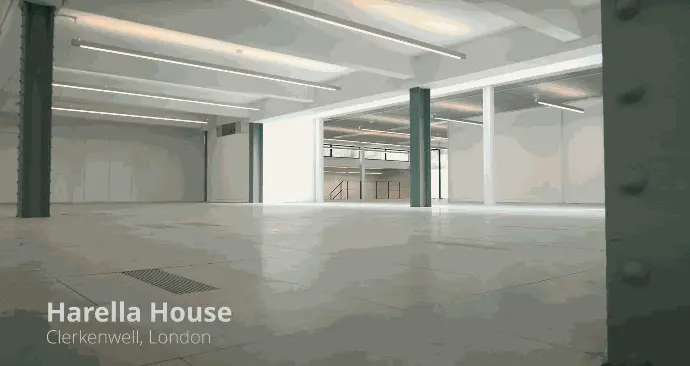

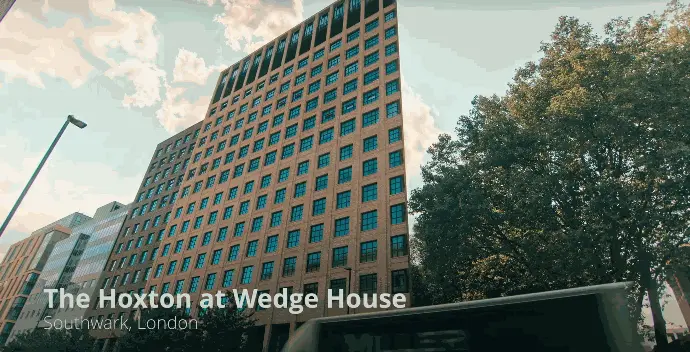

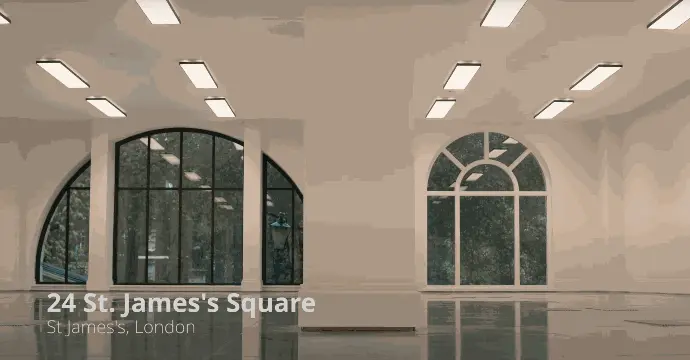

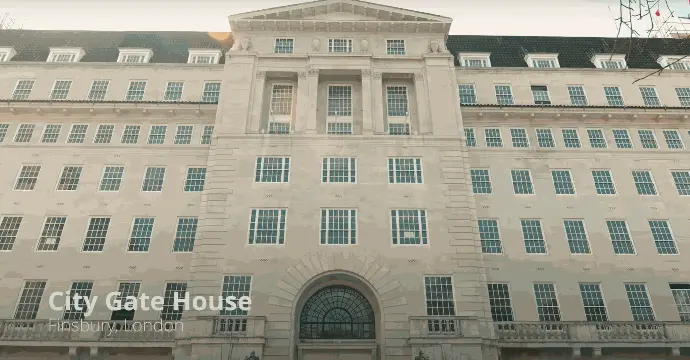

Photo gallery of Underfloor Air Conditiioning
What's Underfloor Air Conditioning ?

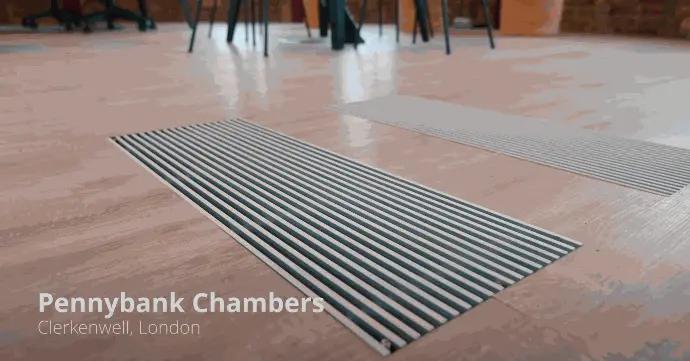

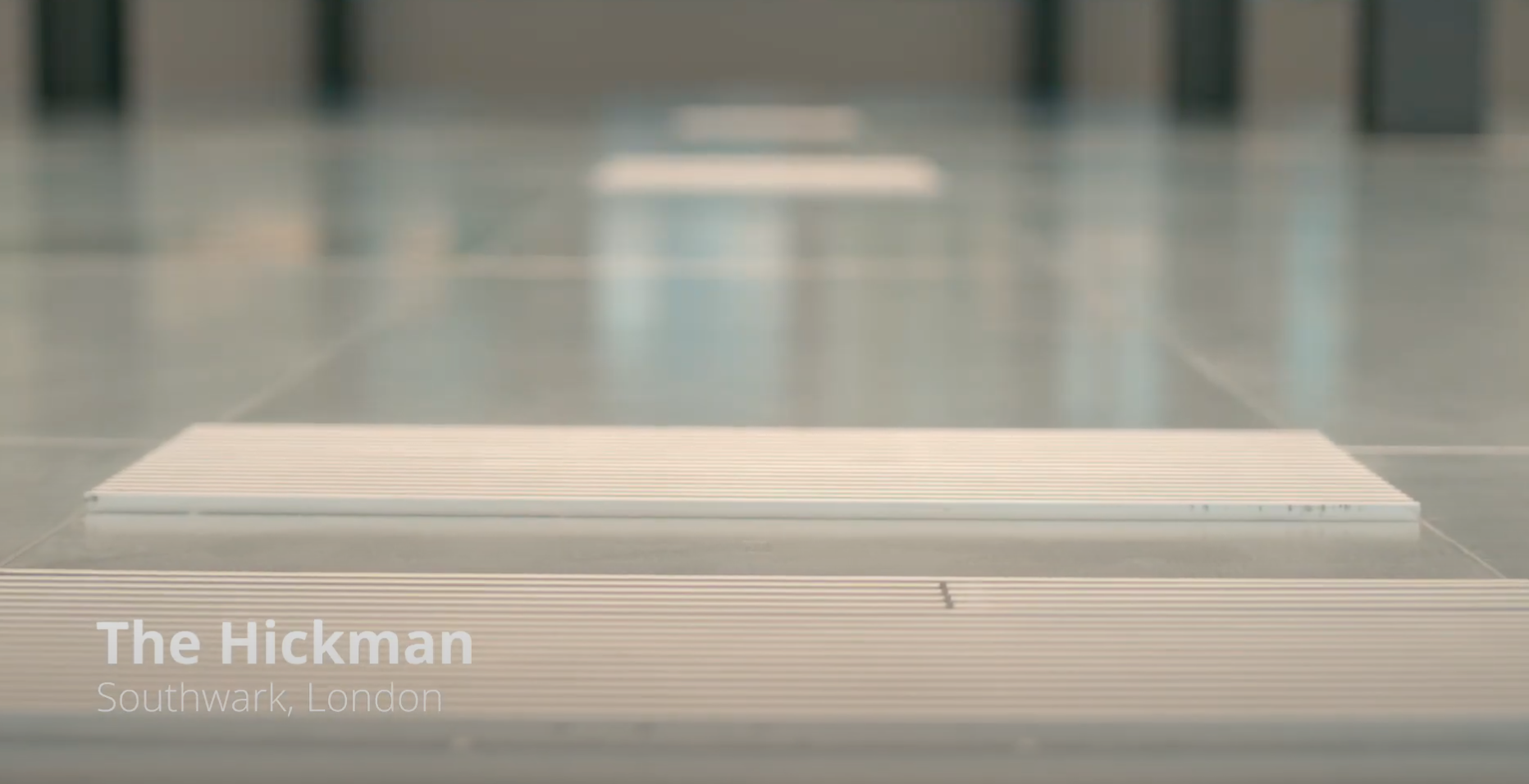

Underfloor Air Conditioning(UFAC) is a method of distributing conditioned air within the void below a raised access floor which is introduced into the space via floor recessed Fantile units, eleminating the need for celing based services and associated duct work.
AET Flexible Space was founded in London in 1993. In 2020, Advanced Technology Solutions was estabished exclusive distributor in Thailand. Our globally-renowned highrise projects including Menara Telekom Tower in Kuala Lumpur, skyscrapers The Center & Nina Tower in Hong Kong and LEED Platinum rated Parkview Green Fang Cao Di in Beijing.
Benefits of UFAC
- Flexibility
- Sustainability
- Energy saving
- Speed of fitout
- Design freedom
- Comfort Cooling
- Healthy Workspace
- Enhanced Capital Allowances
Type of UFAC
CAM - C
Floor level supply air and floor level return air
' Constant air volume and variable temperature supply

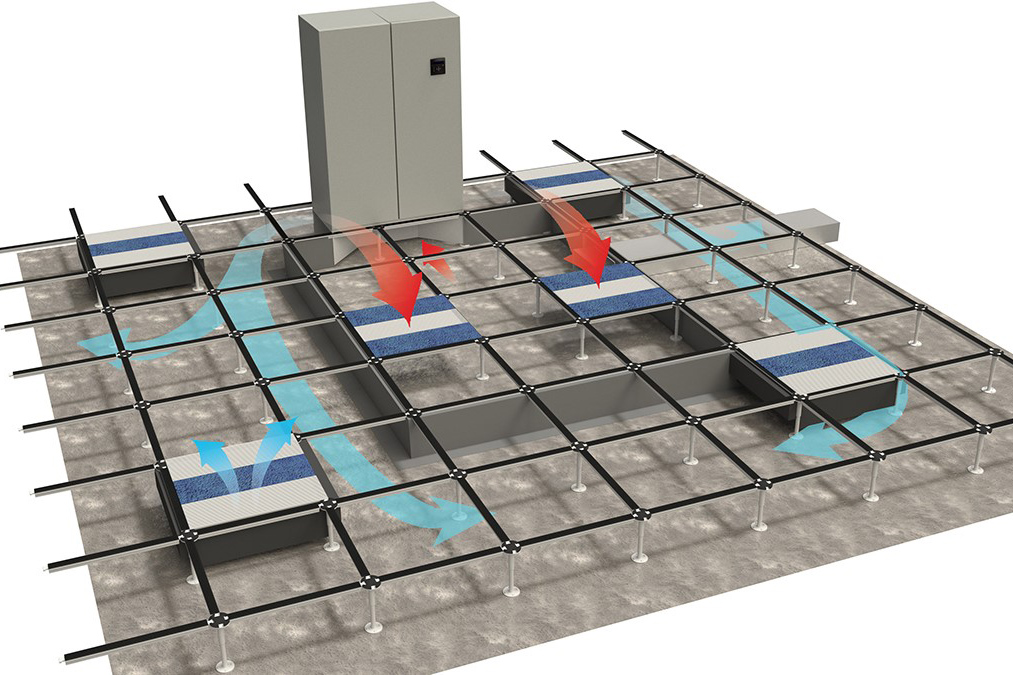

' Zonal mixing system with downflow units supplying conditioned air
' Air segregation baffle used to separate floor void into supply and return

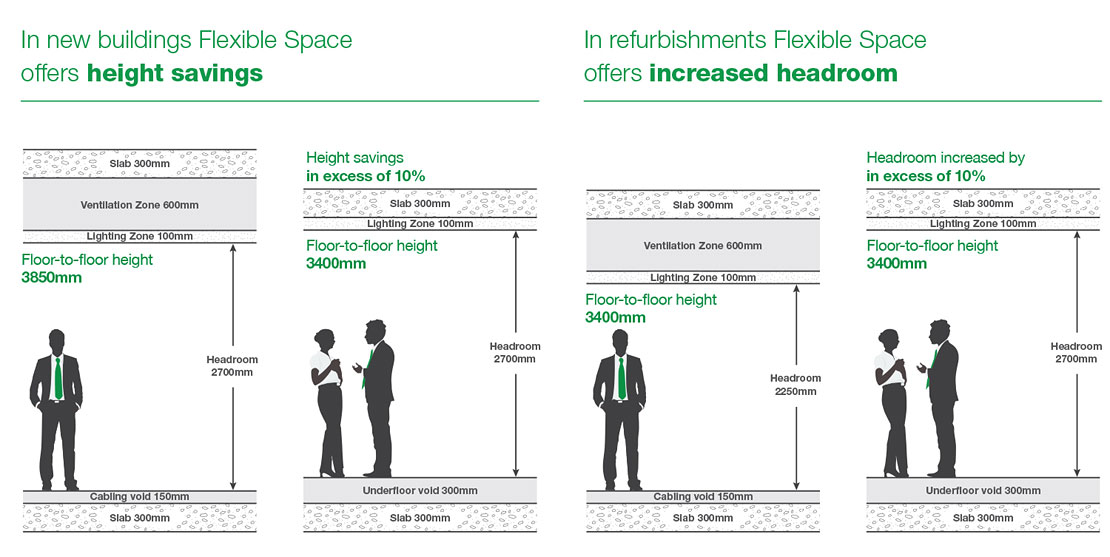

' Best option for limited headroom refurbishment or height saving in new building
' Zonal mixing system with downflow units supplying conditioned air
' Air segregation baffle used to separate floor void into supply and return
' Best option for limited headroom refurbishment or height saving in new building
The best option for increasing headroom in height restricted buildings and where celing may be left exposed to height architectural features
CAM - V
Floor level supply air and high level return air
'' Wide range of performance capacities
' Variable air volume and temperature supply
' Zonal system with downflow units suppling conditioned air locally
' Easy reconfiguration as return air at high level and no devision of plenum
' Variable air volume and temperature supply
' Zonal system with downflow units suppling conditioned air locally
' Easy reconfiguration as return air at high level and no devision of plenum
Complete freedom to maximize the floor plate. No division in the floor plenum means this system is the best option of flexibility and reconfiguration
Raised Access Floor
What's Raised access floor?
Raised access floor is a platform built several inches above the structural floor, creating a cavity/void between the existing floor/slab and the top surface of raised access floor system
Absorption chiller
What's Absorption chiller?
The absorption chiller system uses heat energy of steam or hot water or nature gas which is generated from process or the diesel engines to produce chilled water serving the HVAC installation and cooling in production
Chiller
Cooling tower
Chilled water
